Essentials |
Product Collection |

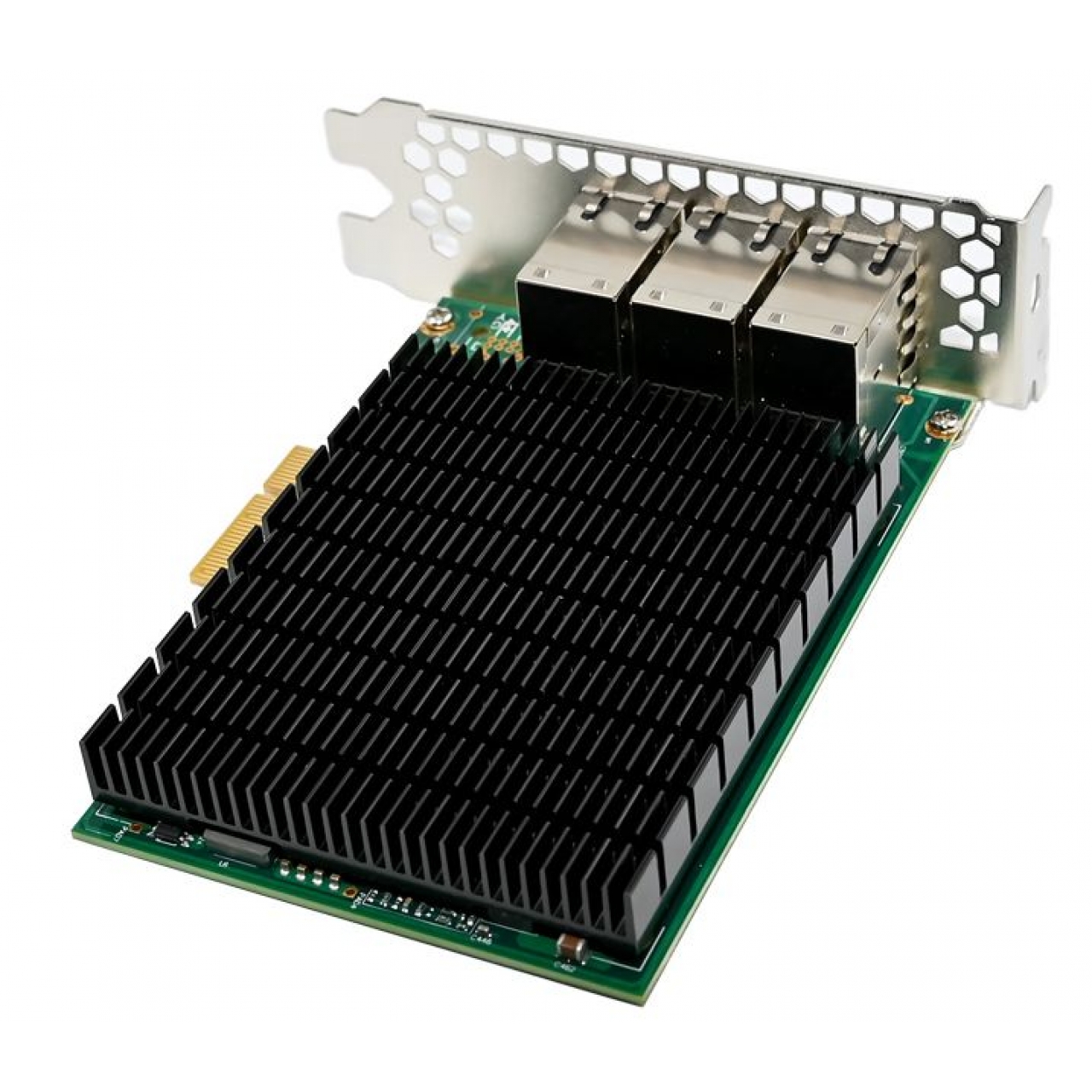

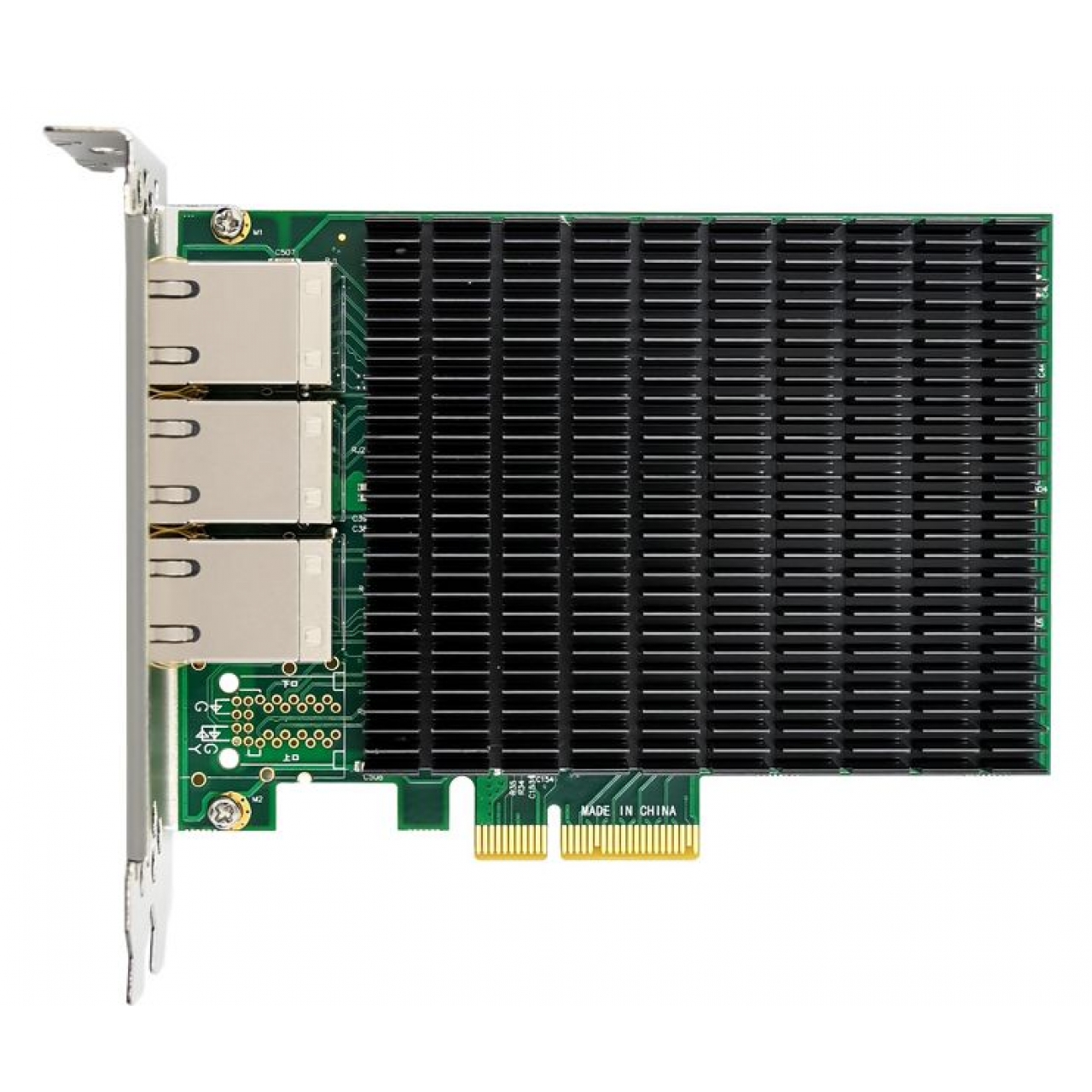

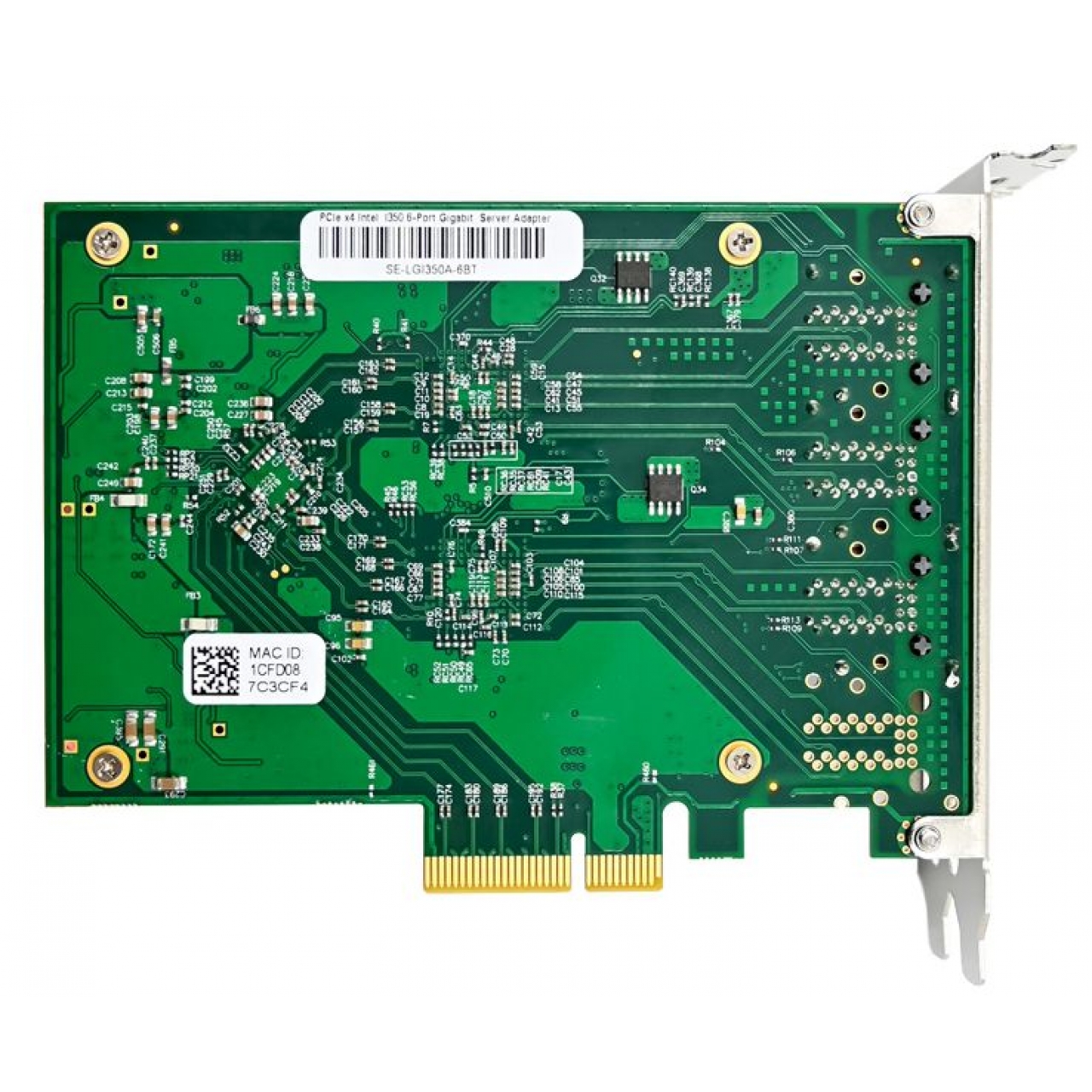

Intel I350 Ethernet Server Adapter |
Controller Processors |
Intel NHI350AM4 + |
Bus Type/Bus Width |
PCI Express* 2.1 (up to 20Gbps bus width) x4-lane, operable in x4, x8 and x16 slot
|
Connections |

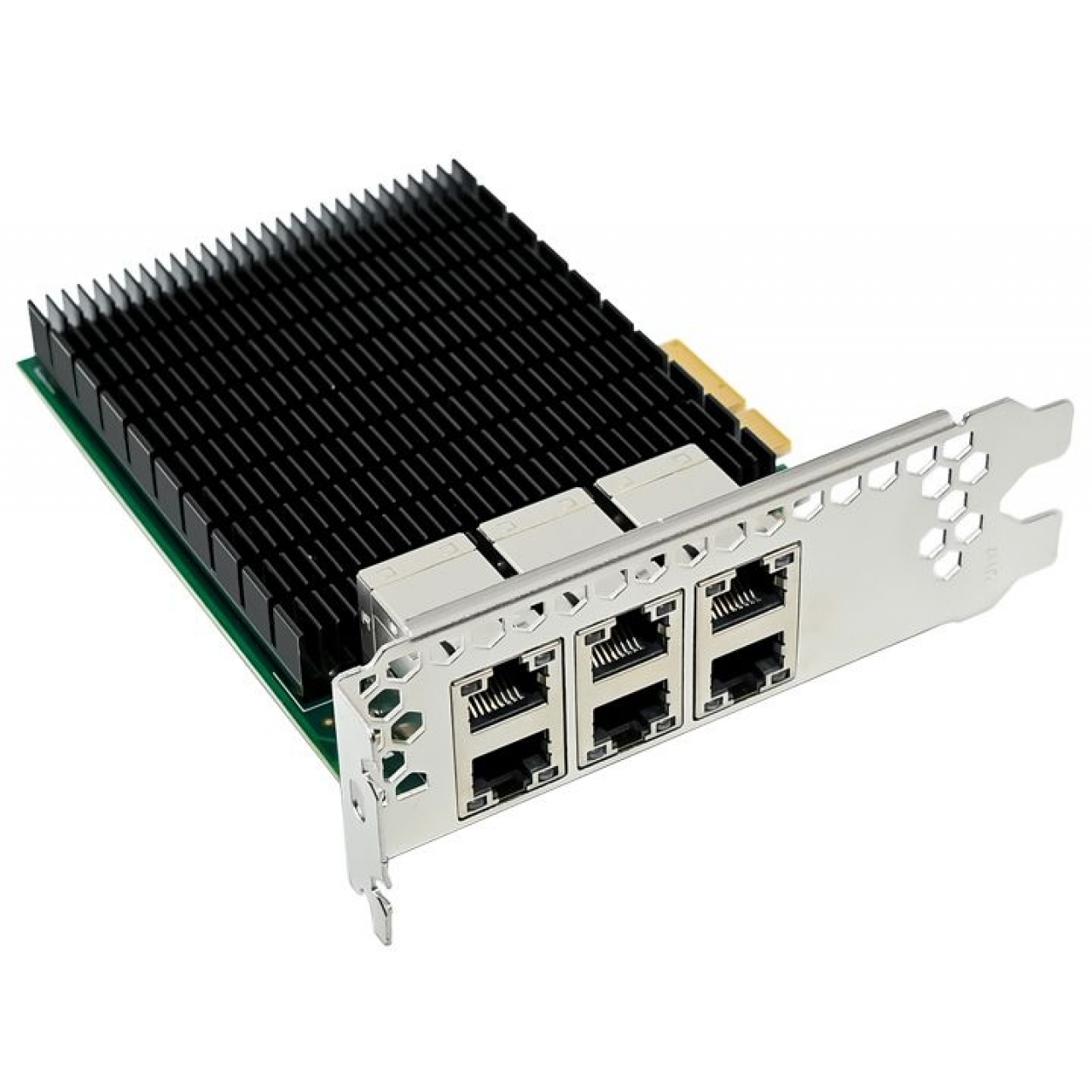

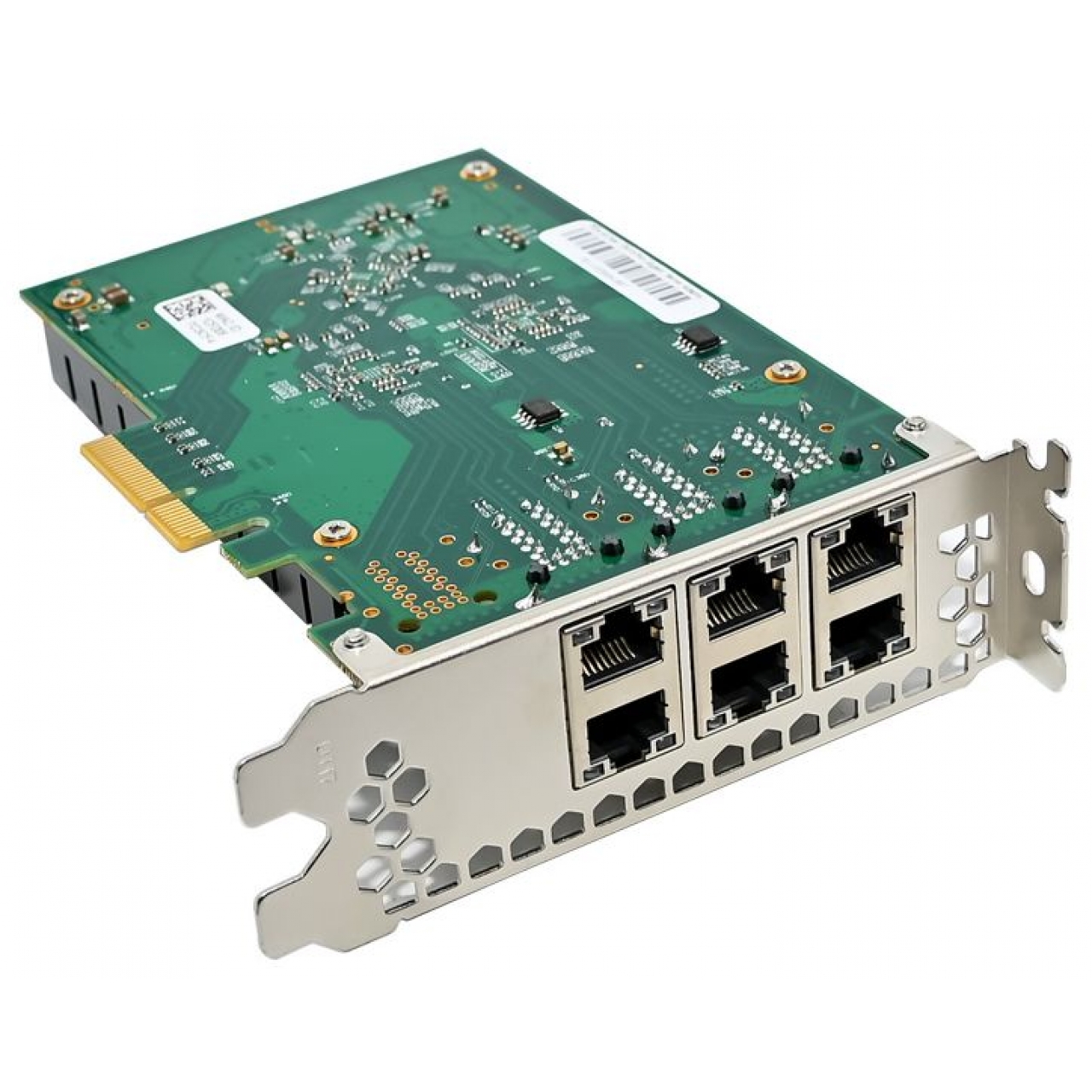

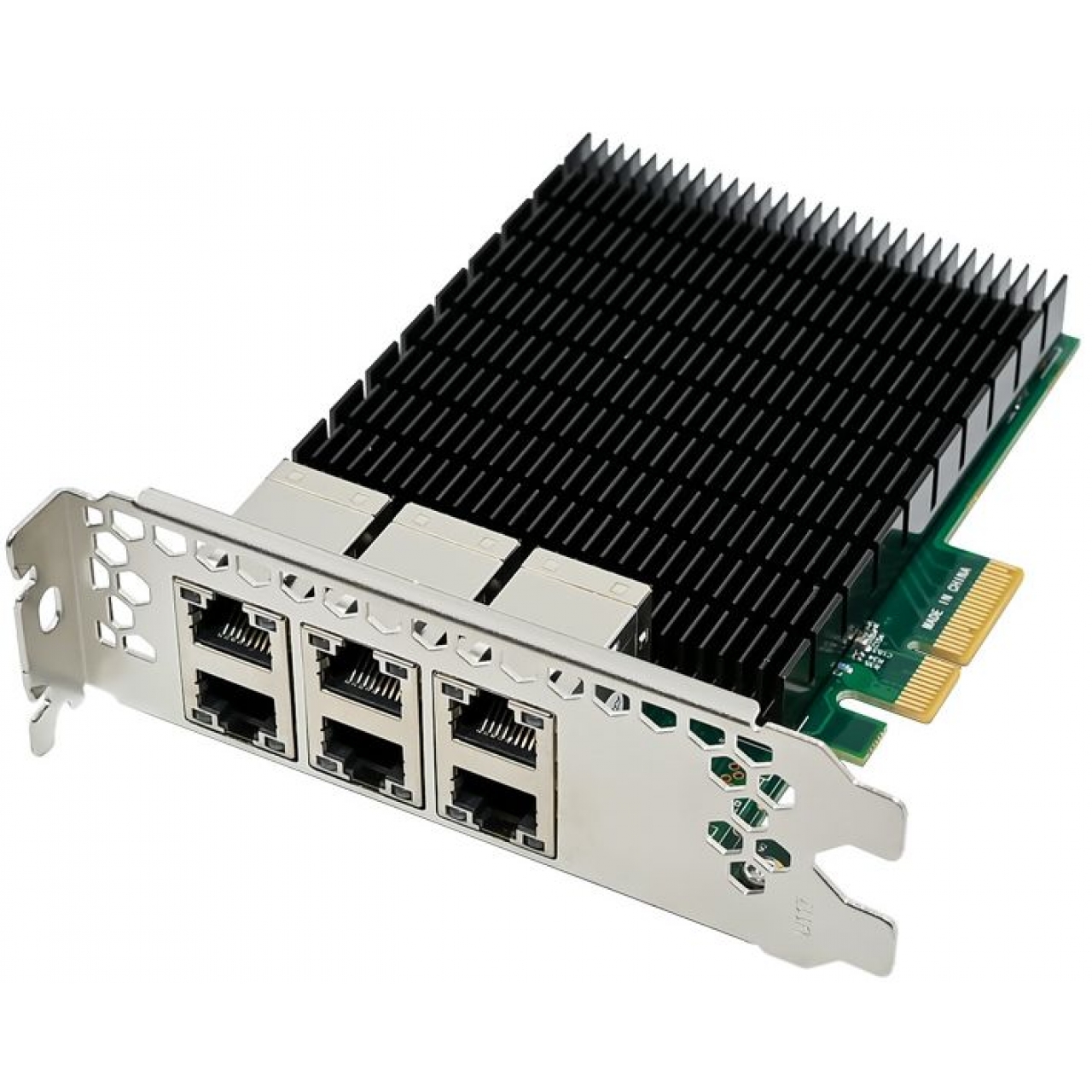

6 x RJ-45 (Copper) |
Data Rate Supported |
10/100/1000 Mbps (Copper), 1000 Mbps (Fiber) |
Cable Distances
|
Copper: up to 100 m |
Category-3 or higher for 10BASE-T operation
Category-5 or higher for 100BASE-TX operation
Category-5e or higher for 1000BASE-T operation
|
Fiber: MMF 62.5/50 um
|
Bracket
|
Full-height bracket installed
|
Dimension |
132 mm x 98 mm (PCIe Board)
|
Technical Specifications |
IEEE standard/
Network topology
|
IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T |
IEEE* 802.3 Auto-negotiation |
1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant |
Integrated PHY for 10/100/1000 Mb/s for multispeed, fulland half-duplex |
IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames |
Automatic cross-over detection function (MDI/MDI-X) |
IEEE 1588 protocol and 802.1AS implementation
|
Interrupt Levels |
INTA, INTB, INTC, INTD, MSI, MSI-X |
System Requirements |
Windows Client |
Windows 11/ 10/ 8.1/ 8/ 7 |
Windows Sever |
2008 R2/ 2012/ 2012 R2/ 2016/ 2019/ 2022 |
Linux |
RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13
|
Environment & Certification |
Power consumption (typical)
|
Copper:
I350T2V2 4.4 W
I350T4V2 5.0 W
|
Fiber:
I350F2 5.5 W
I350F4 6.0 W
|
Storage Humidity Maximum |
90% non-condensing relative humidity at 35 °C |
Storage Temperature |
-40 °C to 70 °C (-40 °F to 158 °F) |
Operating Temperature |
0 °C to 55 °C (32 °F to 131 °F) |
Connect Speed LED Indicators
|
Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper)
|
Green=1 Gb/s. Not illuminated=no link (Fiber) |
Certifications |
CE FCC RoHS |
